Introduction of installation TOUGH COORE™ Coat

Introduction of installation TOUGH COORE Coat

Heat shield pavement “TOUGH COORE Coat” supplied by AGC Ceramics reflects poring sunlight on pavement prevents the pavement from absorbing heat energy and inhibits increase of temperature on road surface. “TOUGH COORE Coat” reduces the feeling-temperature of pedestrian and prevents pedestrian from heatstroke. Pavement,
Two types are available, such as heat shield TOUGH BAHN type and heat shield resin coat type. These types are applicable for installation requirement on various pavements.

Heat shield TOUGH BAHN type

Heat shield TOUGH BAHN type image Heat shield TOUGH BAHN type is heat shield pavement using special ceramics aggregate hard to absorb heat energy of sunlight. This type conforms to NEAT installation method of Japan Technical Association of Resin Pavement, and displays excellent anti-skid property and high durability.
Heat shield TOUGH BAHN type has two colors, one is original aggregate color of light-gray type and another is color of dark-gray type which is friendly color as road.

Application place

Dense-graded asphalt pavement, Concrete pavement, Steel plate, Roadway, Sidewalk, Parking lot

Characteristics

  • Excellent anti-skid property
  • High durability

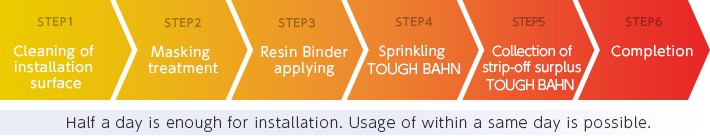

Installation flow

nstallation flow

Example of installation

Measured date: August 6th 2015 (weather: fine)

Place: Takasago City, Hyogo Prefecture Japan

  • image1
  • iamge2

Precaution

  • After installation some strip-off of aggregate occurs due to sprinkling method.
  • Depending on the surface condition, the repair of road surface may be necessary before installation.

Button for catalogue download (PDF・Japanese)

Heat shield resin coat type

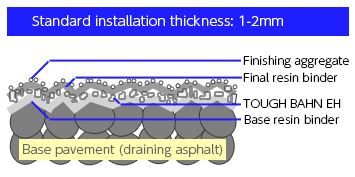

Heat shield resin coat type image
Heat shield resin coat type is suitable for draining pavement (low noise pavement) which is popular at the roadway of metropolitan Tokyo. It is possible to obtain the heat shield function while maintaining necessary function of water permeability.


Application place

Roadway, Sidewalk, Parking lot of porous asphalt pavement (Water permeable pavement, Draining pavement)

Characteristics

  • Excellent anti-skid property
  • In conformity to the regulation of heat shield pavement of metropolitan Tokyo

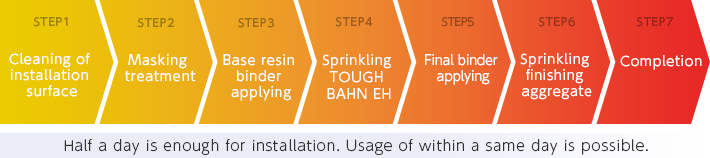

Installation flow

Installation flow

Example of installation at public roadway

Public roadway (Tokyo Sumida area)
*not installed at Sky-Tree Tower itself
Public roadway (Tokyo Minato area)
Public roadway (Tokyo Sumida area) Public roadway (Tokyo Minato area

Precaution

  • Installation of heat shield pavement type is acceptable under the conditions of minimum 200 square meter and draining asphalt or concrete pavement.
  • Depending on the surface condition, the repair of road surface may be necessary before installation.

Button for catalogue download(PDF・Japanese)
