Characteristics

Characteristics

CLC series

By the reduction of the mixing amount of alumina cemet, CLC shows following characteristics.

  • Spalling resistance at high temperature is strengthened.
  • Alkali resistant against foreign alkaline component is strengthened.

Alkali resistace test

(1) Corrosive agent:NaCl 1000℃×24Hrs

Conventional castable
Matrix became weekend
CLC-A6CL49-RE
No deterioration occurred in strength.
CA-13S Matrix became weekend images CLC-A6CL49-RE No deterioration occurred in strength image

(2) Corrosive agent:Na2CO3 1000℃×24hrs

Super low cement castable(conventional Product)
Crack occurred by volume expansion
CLC-A539-RE
Little amount of Alkali penetration occurred
CLC-A649-RE Crack occurred by volume expansion images CLC-A539-RE Little amount of Alkali penetration occurred images

QD Series

QD series, developed by our own technology, have following properties compared with our conventional RE type (RE type: adding additives for preventing explosive spalling)

  • Reduction of the possibility of explosive spalling
  • hort dry out time becomes possible with high speed heating up

【Reference example】

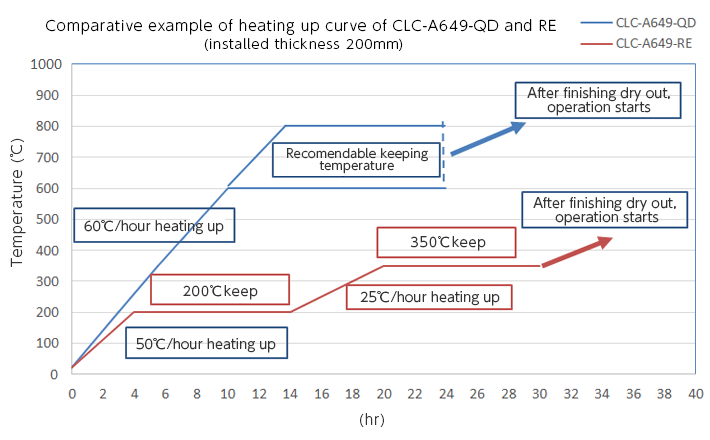

omparative example of heating up curve of CLC-A649-QD and RE
